Relax & Enjoy the
Evolve 20 EHS

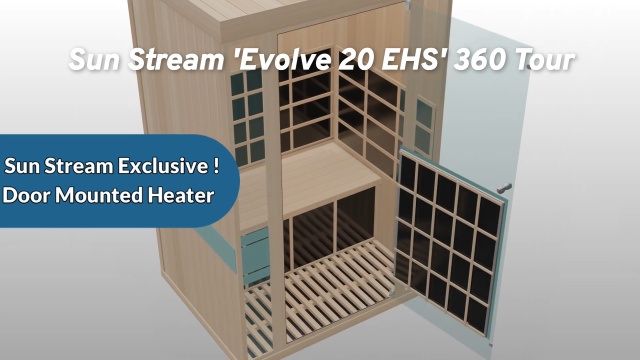

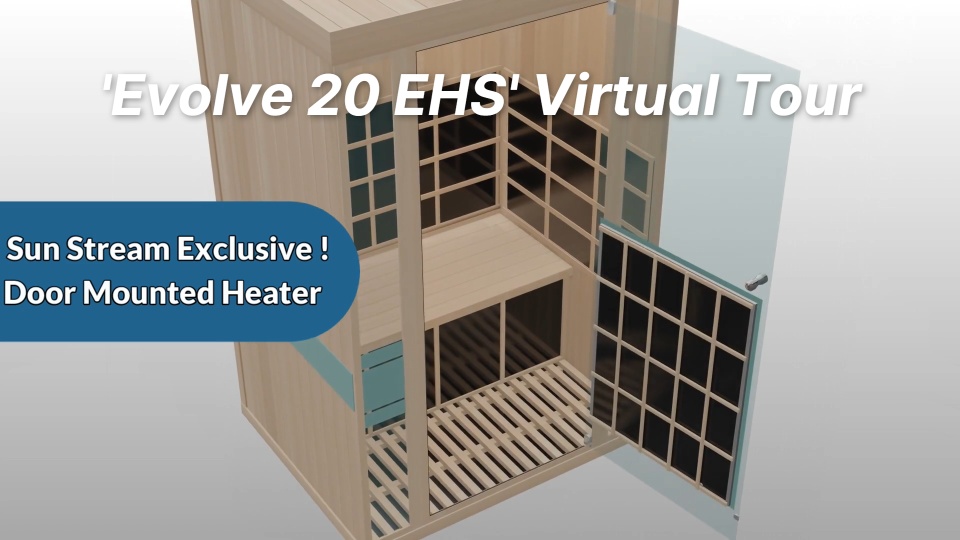

Virtual Video Tour

"*" indicates required fields
The Evolve 20 Infrared Sauna
One of the Most Powerful and Effective Infrared sauna Designs on the market
HIGH Power Concentration = Over 35 Watts/cubic feet
<(Most Infrared saunas have only 20-30 watts/cubic feet)
The Power of a typical 3 Person Sauna concentrated into a 2 Person Size
MORE Infrared Heat | HIGHER Air Temps | FASTER Heat up Time
Complete 360 Degree Surround Infrared Heating
Maximum Infrared Delivered to your Body~ Faster Heavier Sweat








Exterior: 46.5' W' x 38" D x 74" H
Interior: 44" W x 34"D x 69" H
2060 Watts 120V 20 Amp circuit
Front Door: 360 Watts
Left Side wall: 360 Watts
Back Wall: 500 Watts
Right Side Wall: 360 Watts
Floor heater: 240 Watts
Leg Heater: 240 Watts
35watts/cubic feet
(Please note: Not for use with GFCI Outlets)












Most Infrared saunas are sadly lacking in Infrared radiant heat aimed at the front facing surfaces of your body. Discount sauna brands often have no heaters in the entire front half of the sauna.
The Evolve 20 design delivers more Infrared radiant to your body with our large carbon panel heaters surrounding you completely 360 degrees on all 4 walls plus large foot and leg heaters.
Relax and enjoy complete immersion in the soothing Infrared heat. The Evolve 360 design ensures a great sauna experience, without cold voids in the sauna room and a FASTER, HEAVIER SWEAT !!

Average LESS than 1.0 mG EMF Magnetic Fields
Near Zero
EF/ELF Electric fields
Average LESS than 1.0 mG EMF Magnetic Fields
Near Zero
EF/ELF Electric fields
Sun Stream Infrared Saunas have been on the cutting edge of low EMF Infrared heater technology since 2010.
Ten years ago Sun Stream introduced our Ultra- Low EMF carbon panel heaters which reduce EMF magnetic fields to an average of less than 1.0mG. (Many sauna brands measure 100+ mG)
In Spring of 2019 development of our latest heater innovation was completed and the ‘Evolve EHS’ heaters were incorporated into the Evolve 10 sauna. Our new EHS heaters and electrical system involves numerous innovations which reduce the ELF electric fields to near zero levels. An all new industry low !!





NO Plywood, NO Particleboard
The Evolve 20 is built entirely from premium-grade Canadian Hemlock.
No engineered wood products such as Plywood or Particleboard are used in the construction as these are highly suspect to emit formaldehyde when heated. 100% solid Hemlock lumber.
All species of woods have their own distinctive aroma. Hemlock has a very low aroma, far less than Western Red Cedar, which is typically used for hot rock traditional saunas. Hemlock is commonly used throughout the Infrared sauna industry.


Most competing Infrared Sauna brands are adhering synthetic cloth covers to their carbon panel heaters.The Mini’s ‘Evolve EHS’s heaters do not use cloth covers.
- Introduce potentially off-gassing glues and fabrics into the sauna (chemical flame retardents)
- Reduce Infrared heat output
- Inhibit cleaning sweat off the heater surface (especially problematic for floor heaters)
No mystery glues used in your new Evolve sauna!
All Sun Stream Saunas use brand name ‘Titebond’ wood glues which meet FDA criteria for ‘food contact safety’ and are used to make wooden cutting boards, salad bowls etc.
Just one more way that we strive to minimize synthetic potentially off gassing materials and ensure a healthy sauna experience.




The Evolve 20’s backrests are constructed from Western Red Cedar for extra sweat stain resistance and for Cedar’s unique anti-microbial properties.
The angled design sits firmly on the bench and provides comfortable lower back support.
All Sun Stream Saunas feature ‘high watt density’ carbon panel heaters that come to neck/shoulder height. Heater sizing and positioning is critical to the design of an effective Infrared sauna. Most IR saunas use large, tall, narrow heaters extending above the user’s head thus wasting some of the Infrared radiant heat above your body where it is not needed.
Our shorter, smaller heaters have a greater power concentration (higher watt density), a higher surface temperature and thus produce a greater intensity of Infrared heat which is aimed at the mass of your body.
Our ‘Open Design’ heater guards, with a minimum # of wood slats, also helps to ensure maximum Infrared delivered to your body.

The Evolve 20 includes one of Sun Stream’s exclusive Option-L movable benches that easily lifts in and out of the sauna. Place the bench anywhere you like in the front of the sauna to create an L shape or different bench configurations.
Purchase a 2nd movable bench to create a large platform.



Relax and enjoy your favorite podcast or music
Connect your favorite device via Bluetooth to the sauna’s stereo speakers
OR disable Bluetooth & connect directly using standard audio cord, the choice is yours.



Sun Stream Infrared Saunas’ electronic controller features our new AII, Adjustable Infrared Intensity, system. This unique feature allows the user to adjust the Infrared heat intensity to 100%, 75% or 50% levels. This control mechanism is separate from the air temperature thermostat and allows the amount of Infrared heat to be optimally set for different purposes & personal needs.
- 100% Full sauna sweating experience
- 75% Hot Yoga, Athletic stretching, Injury treatment
- 50% Low Heat tolerance individuals

Adjust the color to your liking and flood your room with color to enhance your sauna experience!
Our High Power Chromotherapy ceiling LED panel features 180 LEDs, 40 watts of power and 12 colors to choose from with the remote control.
Standard in all models. EASY DIY retrofit for the Evolve Mini!


All Sun Stream Saunas feature heater guards held to the walls with strong earth magnets. This enables easy removal of the guards to wipe the slick surface of the heaters clean from sweat a and dust.
If preferred, the heater guards have pre-drilled holes and can be more permanently attached to walls with included wood screws

Simply flip the floor grate up (no tools required) to gently wipe the floor heater of sweat.


Unpack, set up & tidy up in 2-3 hrs and you will be ready for your first great sweat!
Two people required with moderate weights to lift.
The Evolve 20 assembles in a snap with only minimal need for tools!
A cordless drill is required only for the movable benches. The sauna room itself sets up quickly without any need for tools.
Our invisible corner fasteners create a finely finished look for your sauna and are preferable to the obtrusive exterior buckles found on discount sauna brands.

Enjoy your favourite essential oil aroma, such as lavender or eucalyptus, with the convenient aromatherapy unit included with your new Mini sauna!
Cupholder Included
- Sun Stream Spa towel
- Sun Stream Dry skin brush
- Pure Wool felt sauna hat

" What an awesome IR Sauna! Easily 4 times as intense as my old xxxx [major brand] sauna. I love it!!"
Evolve 20 Customer:
WOW ! Just took my first sauna. What an awesome IR Sauna! Easily 4 times as intense as my old xxxx [major brand] sauna. I love it!!
I’m obsessed with the intensity of the Evolve 20!! I’ve never sweated so much in a sauna in my life, bar none….

"We couldn’t believe how easy it was to put up and once it was up how well made it is "
We couldn’t believe how easy it was to put up and once it was up how well made it is. We love it and feel really blessed to finally own a sauna. We’re sooooo happy with our decision to go for this sauna and are looking forward to years of healing heat.

"The innovation in the Evolve actually took my breath away."
Your saunas are gorgeous. The innovation in the Evolve actually took my breath away. The prices are excellent, especially given the quality. it is no surprise that my son's ND recommends them Thanks for making such gorgeous and effective products
